How to Read Harmonic Notation
By Douglas Niedt
Copyright Douglas Niedt, All Rights Reserved. This article may be reprinted, but please be
considerate and give credit to Douglas Niedt.
You are on DouglasNiedt.com
Welcome to the wacky world of harmonic notation. Harmonic notation for the guitar is a
mishmash of contradictions and inconsistencies. Some passages of harmonics in the repertoire
are unfathomable as to how they are to be played. But then, you knew that. Since beginning
this series of classical guitar technique tips on harmonics, I have received many pleas for help
for an explanation of harmonic notation.
First, I will describe the three systems of notation for natural harmonics. Then, I will give details
on the many flavors of notation for artificial harmonics.
NATURAL HARMONIC NOTATION
System #1 for notating natural harmonics
The first system notates the open string on which the harmonic will be played with a number
indicating which fret to touch. Take note that in this system, the notation does not tell you what
pitch is coming out of the guitar. Simple enough, huh?
No. Variations abound:
1. The notehead may or may not be notated as a diamond shape (Ex. #1):

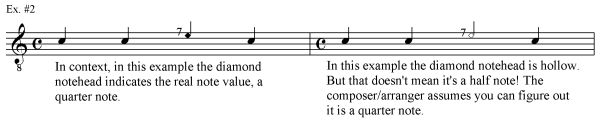

2. If a diamond shape is used, it may or may not indicate the real note duration (Ex. #2):
3. The number indicating the fret at which the left hand touches the string may be Arabic or
Roman: (Ex. #3):

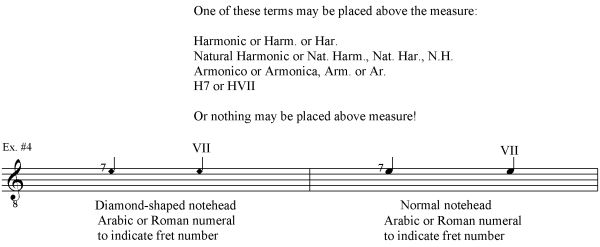

4. The composer/arranger may add one of these terms above the measure:
See Ex. #4 for all these variations:

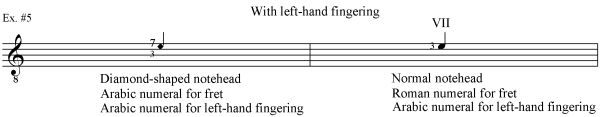

5. Left-hand fingering may or may not be present (Ex. #5):
Therefore, THE SAME HARMONIC may be indicated in any of the following twelve ways (Ex. #6):
Any of those twelve can take on one of the twelve added descriptive terms mentioned above
(harmonic, harm., har., etc.). By my count, so far, that makes 144 possible ways of notating the
exact same harmonic.

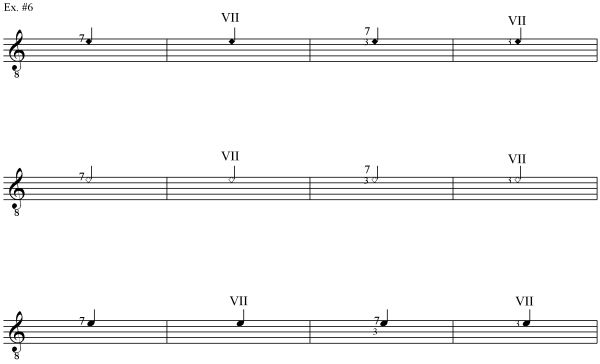

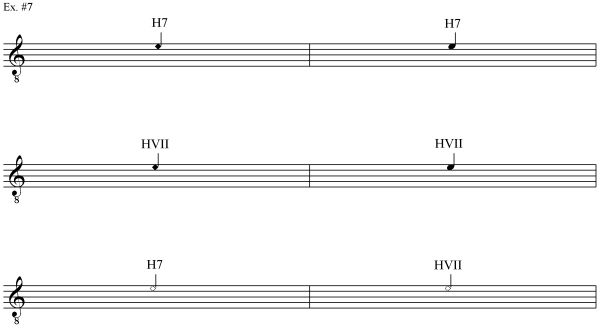

Another way of notating harmonics in this first system is to use the letter H with an Arabic or
Roman numeral to denote the fret. That adds these possible versions (Ex. #7):

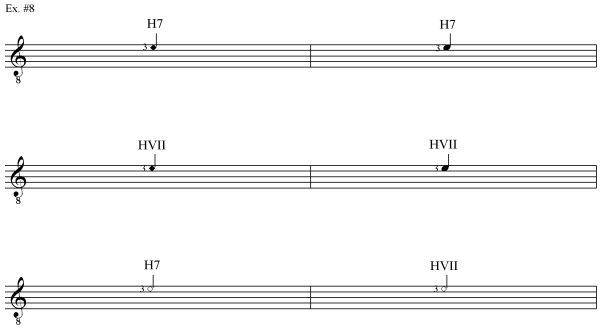

Each of the preceding can have left-hand fingering added (Ex. #8):
That adds twelve more ways to notate our harmonic. According to my math, we are up to 156
Plus, a small circle may be added above or beside the notehead in all of the preceding
examples (Ex. #9):
That makes a grand total of 312 ways to notate the same harmonic. And again, that’s just with
the first of three systems we will look at!
6. As you know, a natural harmonic is normally played with both hands. But it may also be
played with the right-hand alone (like an artificial harmonic). Sometimes that will be indicated,
sometimes not. When specified, you may see the following notations above the staff or close to
the harmonic note:
After playing natural harmonics with right-hand harmonic technique, an indication to return to
normal natural harmonic technique may be made by referring to the left hand: mano izquierda
in Spanish (m.i. or M.I.) or main gauche in French (m.g. or M.G.).

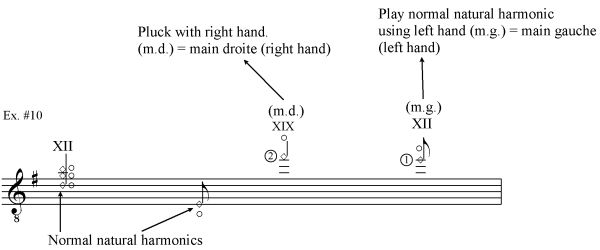

In his arrangement of Nuages by Django Reinhardt, Roland Dyens uses both types of natural
harmonic technique in the same measure. Notice that the system Dyens uses to notate his
harmonics is not the one we are discussing. It is system #3 which we will get to soon. But, this is
a very good example of how the normal technique and right-hand technique of producing
natural harmonics may be mixed together (Ex. #10):
System #2 for notating natural harmonics

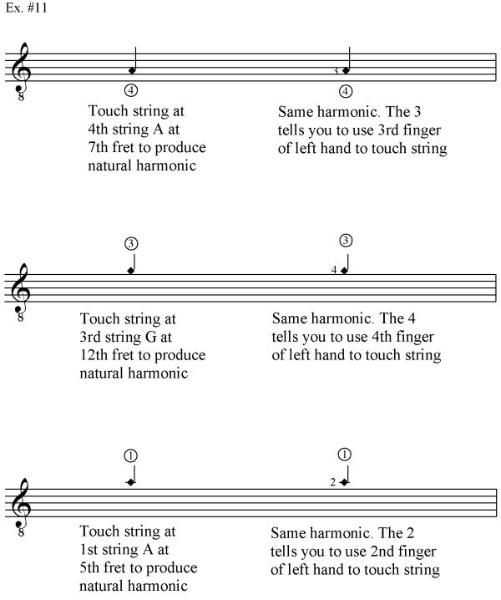

The second system for notating natural harmonics indicates the note where the left-hand finger
touches the string to produce the harmonic. Additional numeric information is given to indicate
which string the note is on and which left-hand finger to use. Here are three examples (Ex. #11):

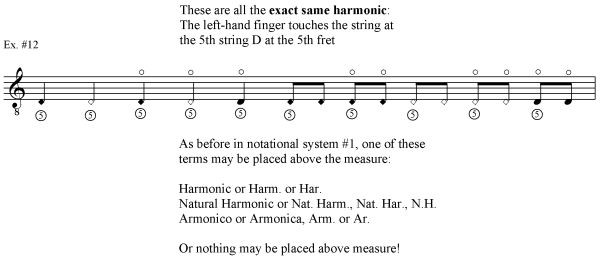

As with the first system of notation, the notehead may be a diamond or not, solid or hollow, and
a circle may or may not be placed somewhere by the notehead. Likewise, one of the terms
Harmonic (Harm. or Har.), Natural Harmonic (Nat. Harm., Nat. Har., or N.H.), Armonico or
Armonica (Arm. or Ar.) may or may not be used (Ex. #12):
The main thing to remember about this system of notation is that the written note may or may
not coincide with the pitch produced by the guitar.

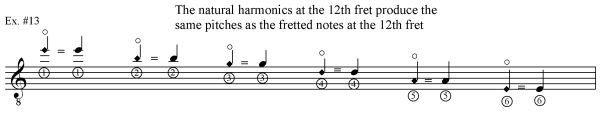

At the 12th fret, the pitch of the written note and the pitch that comes out of the guitar are the
same (Ex. #13):
At the 7th fret, the pitch that comes out of the guitar is an octave higher than the written note
(Ex. #14):

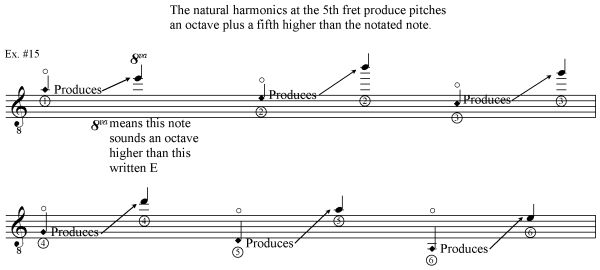

At the 5th fret, the pitch that comes out of the guitar is an octave plus a fifth higher than the
written note (Ex. #15):

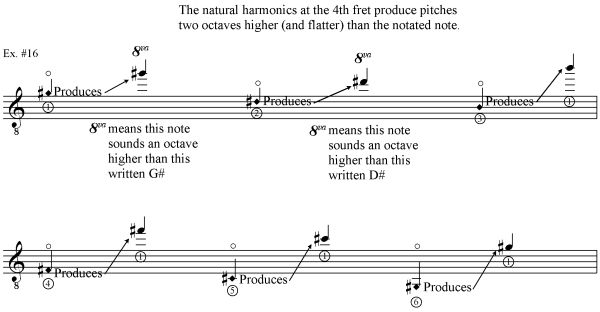

At the 4th fret, the pitch that comes out of the guitar is two octaves higher (though noticeably
flatter) than the written pitch (Ex. #16):

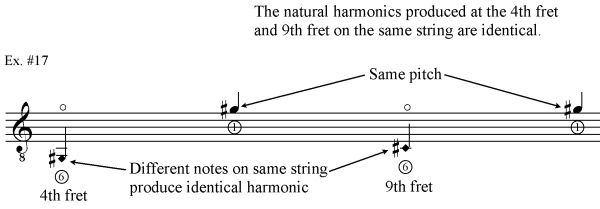

At the 9th fret, the pitches that come out of the guitar are exactly the same as those at the 4th
fret. But the notation looks entirely different from that at the 4th fret because again, in this
system of notation, we are indicating the note where the left-hand finger touches the string to
produce the harmonic. The notes at the 9th fret are different from those at the 4th fret.
Therefore, the harmonic notation looks different on paper. But the notes coming out of the
guitar are identical (Ex.#17):

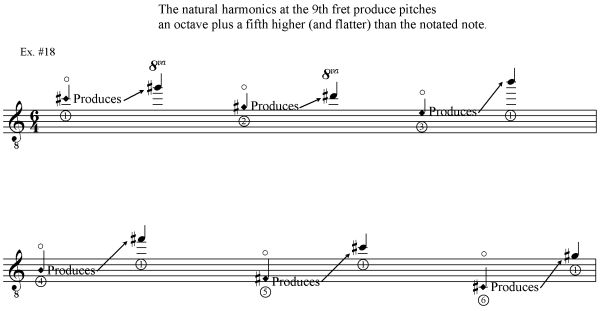

At the 9th fret the harmonics sound an octave plus a fifth higher than the notated pitch (Ex.
#18):

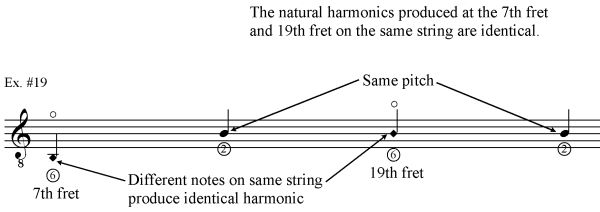

At the 19th fret, the pitches that come out of the guitar are exactly the same as those at the 7th
fret. But here again (as with the 4th and 9th frets), the notation for the 19th fret looks entirely
different that at the 7th fret because this system of notation indicates the note where the left-
hand finger touches the string to produce the harmonic. The notes at the 19th fret are different
from those at the 7th fret. Therefore, the harmonic notation looks different on paper. But the
notes coming out of the guitar are identical (Ex. #19):

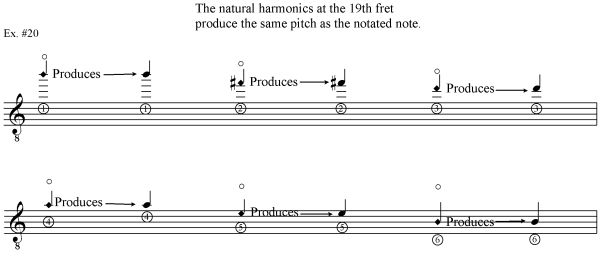

At the 19th fret the harmonics sound the same pitch as the written pitch (Ex. #20):
Some composer/arrangers who use this system of natural harmonic notation differentiate
between harmonics that sound the same pitches as the written notes and those that produce
different pitches from the written notes. In the well-known natural harmonic section of his
Prelude No. 4, Heitor Villa-Lobos used this type of notation. Unfortunately the printed version
has many mistakes in it (as do countless other passages of harmonics in Villa-Lobos’ music).

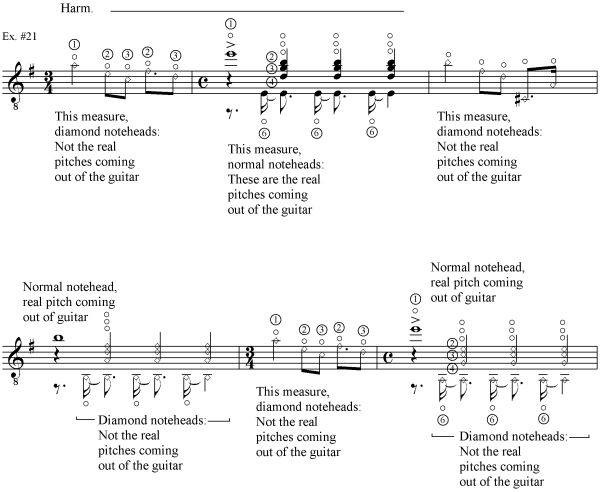

This is what he was intending to notate (Ex. #21):
Note Villa-Lobos’ use of the open or hollow diamond noteheads. Other composers/arrangers
use this notation as well. I suppose it emphasizes that these are harmonics, but I find it
unnecessary. I think it is far preferable and less confusing to use the open or hollow diamond
noteheads only for half-notes and whole-notes, as in normal notation. Using the open diamond
noteheads for all note values can lead to misinterpretation or obfuscation of rhythms.
Incidentally, while we are on the subject of Villa-Lobos, another source of confusion in his music
arises from the publisher/printer’s use of the same circle symbol to indicate harmonics and
normal open strings.
System #3 for notating natural harmonics
The third system for notating natural harmonics indicates only the real pitch coming out of the
guitar. Sometimes, to help the performer locate the harmonic, additional information is given
such as string, fret number (in Arabic or Roman numerals), and left-hand finger to use. Other
times it is assumed the performer knows where to play the harmonic or can figure it out.
As with the first two systems of notation, the notehead may be a diamond or not, solid or hollow,
and a circle may or may not be placed somewhere by the notehead. Likewise, one of the terms
Harmonic (Harm. or Har.), Natural Harmonic (Nat. Harm., Nat. Har., or N.H.), Armonico or
Armonica (Arm. or Ar.) may or may not be used.
Proponents champion this system because it shows the real pitches that are intended to be
played. In the other two systems, what you see on paper has nothing to do with what you are
hearing.

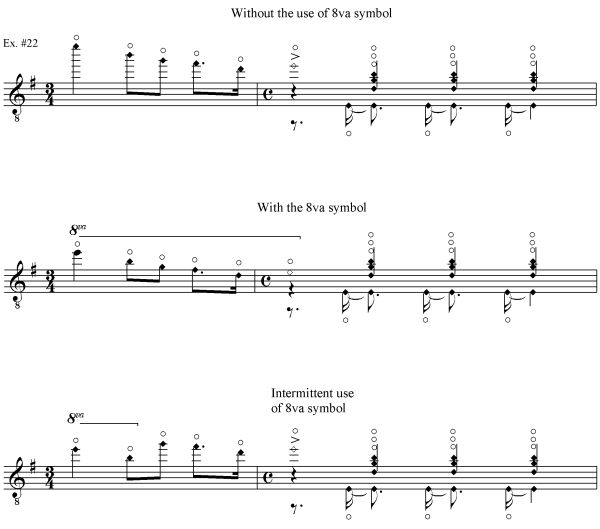

Using this system, the first two measures of the harmonics section in Villa-Lobos’ Prelude No. 4
could be notated as follows. Remember, 8va (ottava) means the pitch sounds an octave higher
than written. If the 8va symbol is not used, sometimes the very high pitches can be difficult to
read. If it is used, sometimes the contour of the melody is not as clear (Ex. #22):

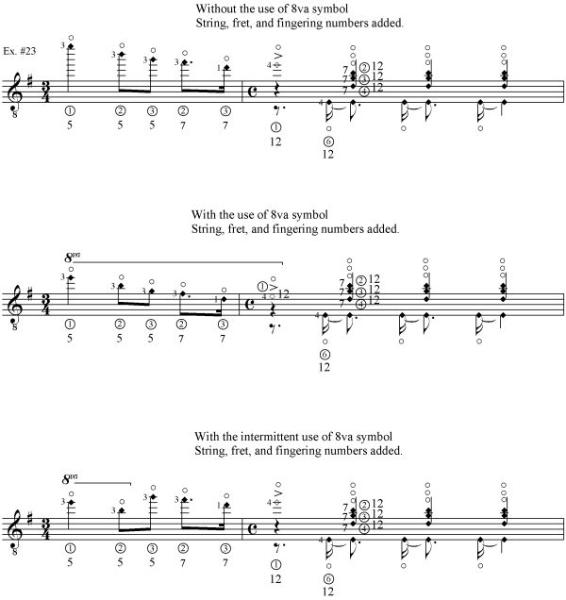

Without the designation of string and fret information, it can be a challenge to read this system
of natural harmonic notation. Adding that information, plus left-hand fingering, makes it much
easier (Ex. #23):
Again, keep in mind that a passage such as this can include all the bells and whistles of
notation (diamond noteheads, circles indicating harmonics, and string, fret, and finger
numbers) or may be notated in a barebones minimalist fashion such as this (Ex. #24):
ARTIFICIAL HARMONIC NOTATION
Artificial harmonics are notated at their sounding pitch sometimes with the use of ottava
nomenclature. The reason I say ottava nomenclature is that the 8va sign may be used, or
words such as:
And, as with natural harmonics, one may or may not see diamond noteheads (solid or hollow
according to the note value, or all hollow), normal noteheads, circle symbols indicating
harmonics, string numbers, fret numbers (in Arabic or Roman numerals), and fingering
numbers.

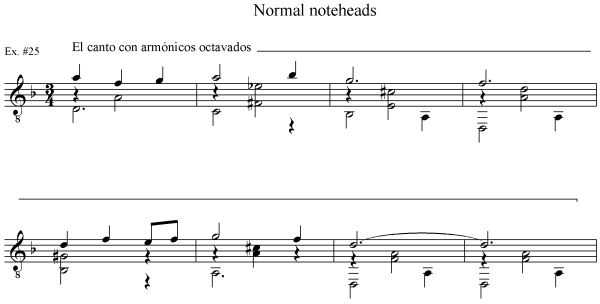

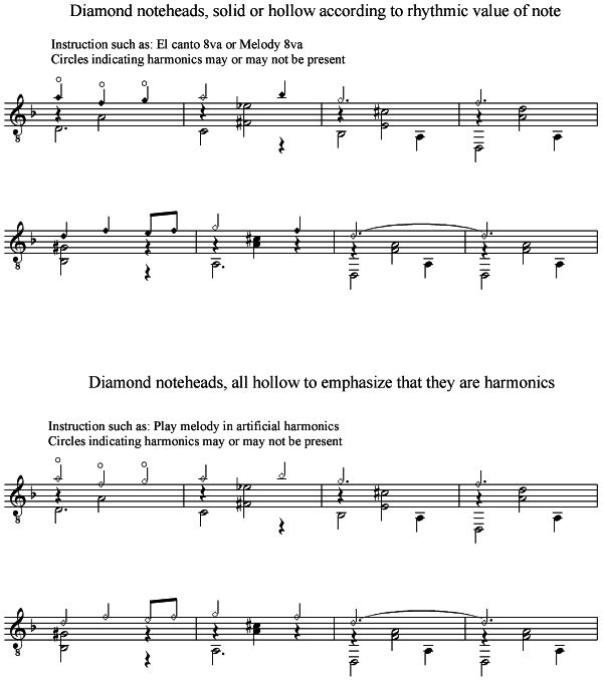

For example, the artificial harmonic section of El Testament d’Amelia harmonized by Miguel
Llobet could be notated in the following ways (Ex. #25):

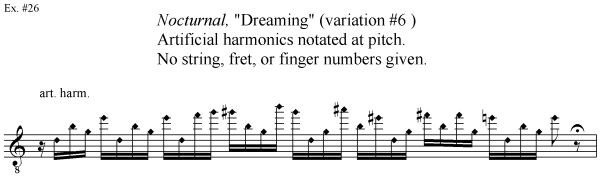

In the sixth variation (“Dreaming”) of Nocturnal, Benjamin Britten notates artificial harmonics at
pitch (Ex. #26):

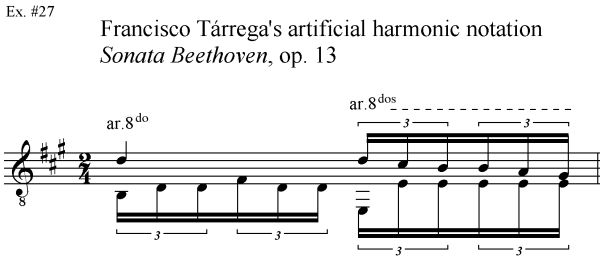

Here is a sample of Francisco Tárrega’s artificial harmonic notation (Ex. #27):

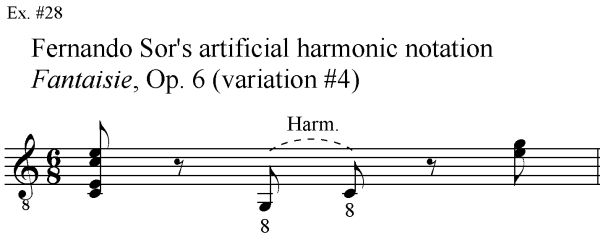

Here is an example of artificial harmonics as notated by Fernando Sor in the fourth variation of
his Fantaisie, Op. 6 (Ex.# 28):

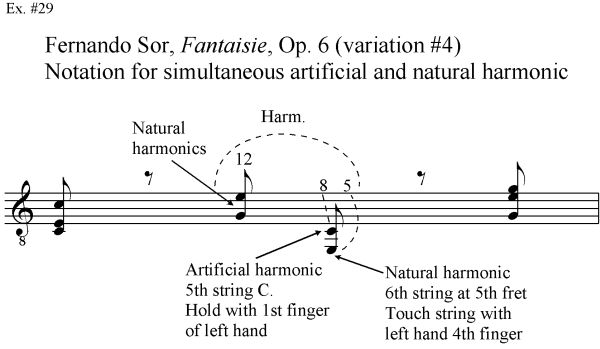

Look at this next example of Sor’s notation in the same piece and variation. Here, we have an
interval consisting of one note played as a natural harmonic, the other as an artificial harmonic
(Ex. #29):
Note that the number 8 with a dashed line pointing to the note C is the only thing Sor uses to
indicate the C is an artificial harmonic. He follows System #1 for the natural harmonics, writing
the open string with a fret number.

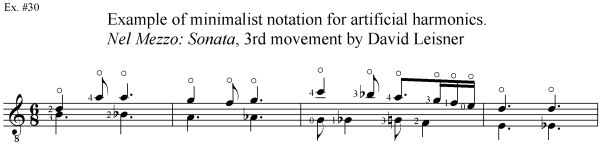

In the third movement of his Nel Mezzo: Sonata, guitarist/composer David Leisner uses a
minimalist style of notating artificial harmonics (Ex. #30):

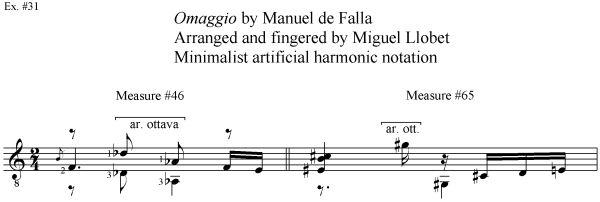

One more example of minimalist notation of artificial harmonics occurs in two measures of the
Omaggio by Manuel de Falla, arranged and fingered by Miguel Llobet (Ex. #31):
Those are the notational schemes you will encounter for artificial harmonics in the classical
guitar repertoire. Keep in mind these schemes will be altered by the numerous notational
variations already mentioned such as diamond noteheads, standard noteheads, circles to
designate harmonics, as well as the many descriptive terms added above or at the beginning of
the passage.
It gets worse
I know. It’s complicated enough as it is. But now, add in publisher/printer/composer/arranger
errors such as:
No wonder we’re all confused!
I’ve spent twenty hours of a beautiful weekend preparing this technique tip to help guide you
through the murky underworld of harmonic notation. But, you may still encounter an
indecipherable passage of harmonics. But don’t be discouraged. When confronted with a
passage of harmonics that you just can’t figure out, even with all the information I’ve given you
here, do what I do. Listen to how John Williams plays it! Haha. Or, just make your best wild
guess.
By Douglas Niedt
Copyright Douglas Niedt, All Rights Reserved. This article may be reprinted, but please be
considerate and give credit to Douglas Niedt.
You are on DouglasNiedt.com
Welcome to the wacky world of harmonic notation. Harmonic notation for the guitar is a
mishmash of contradictions and inconsistencies. Some passages of harmonics in the repertoire
are unfathomable as to how they are to be played. But then, you knew that. Since beginning
this series of classical guitar technique tips on harmonics, I have received many pleas for help
for an explanation of harmonic notation.
First, I will describe the three systems of notation for natural harmonics. Then, I will give details
on the many flavors of notation for artificial harmonics.
NATURAL HARMONIC NOTATION
System #1 for notating natural harmonics
The first system notates the open string on which the harmonic will be played with a number
indicating which fret to touch. Take note that in this system, the notation does not tell you what
pitch is coming out of the guitar. Simple enough, huh?
No. Variations abound:
1. The notehead may or may not be notated as a diamond shape (Ex. #1):
2. If a diamond shape is used, it may or may not indicate the real note duration (Ex. #2):
3. The number indicating the fret at which the left hand touches the string may be Arabic or
Roman: (Ex. #3):
4. The composer/arranger may add one of these terms above the measure:
- Harmonic (Harm., Har.)
- Natural Harmonic (Nat. Harm, Nat. Har, N.H.)
- Armonico or Armonic, (Arm, Ar.)
- Or, it may say nothing!
See Ex. #4 for all these variations:
5. Left-hand fingering may or may not be present (Ex. #5):
Therefore, THE SAME HARMONIC may be indicated in any of the following twelve ways (Ex. #6):
Any of those twelve can take on one of the twelve added descriptive terms mentioned above
(harmonic, harm., har., etc.). By my count, so far, that makes 144 possible ways of notating the
exact same harmonic.
Another way of notating harmonics in this first system is to use the letter H with an Arabic or
Roman numeral to denote the fret. That adds these possible versions (Ex. #7):
Each of the preceding can have left-hand fingering added (Ex. #8):
That adds twelve more ways to notate our harmonic. According to my math, we are up to 156
Plus, a small circle may be added above or beside the notehead in all of the preceding
examples (Ex. #9):
That makes a grand total of 312 ways to notate the same harmonic. And again, that’s just with
the first of three systems we will look at!
6. As you know, a natural harmonic is normally played with both hands. But it may also be
played with the right-hand alone (like an artificial harmonic). Sometimes that will be indicated,
sometimes not. When specified, you may see the following notations above the staff or close to
the harmonic note:
- Right-hand harmonic (R.H. Harm., R.H. Har.)
- mano derecha (“right hand” in Spanish), (m.d., M.D.)
- main droite (“right hand” in French) (m.d., M.D.)
After playing natural harmonics with right-hand harmonic technique, an indication to return to
normal natural harmonic technique may be made by referring to the left hand: mano izquierda
in Spanish (m.i. or M.I.) or main gauche in French (m.g. or M.G.).
In his arrangement of Nuages by Django Reinhardt, Roland Dyens uses both types of natural
harmonic technique in the same measure. Notice that the system Dyens uses to notate his
harmonics is not the one we are discussing. It is system #3 which we will get to soon. But, this is
a very good example of how the normal technique and right-hand technique of producing
natural harmonics may be mixed together (Ex. #10):
System #2 for notating natural harmonics
The second system for notating natural harmonics indicates the note where the left-hand finger
touches the string to produce the harmonic. Additional numeric information is given to indicate
which string the note is on and which left-hand finger to use. Here are three examples (Ex. #11):
As with the first system of notation, the notehead may be a diamond or not, solid or hollow, and
a circle may or may not be placed somewhere by the notehead. Likewise, one of the terms
Harmonic (Harm. or Har.), Natural Harmonic (Nat. Harm., Nat. Har., or N.H.), Armonico or
Armonica (Arm. or Ar.) may or may not be used (Ex. #12):
The main thing to remember about this system of notation is that the written note may or may
not coincide with the pitch produced by the guitar.
At the 12th fret, the pitch of the written note and the pitch that comes out of the guitar are the
same (Ex. #13):
At the 7th fret, the pitch that comes out of the guitar is an octave higher than the written note
(Ex. #14):
At the 5th fret, the pitch that comes out of the guitar is an octave plus a fifth higher than the
written note (Ex. #15):
At the 4th fret, the pitch that comes out of the guitar is two octaves higher (though noticeably
flatter) than the written pitch (Ex. #16):
At the 9th fret, the pitches that come out of the guitar are exactly the same as those at the 4th
fret. But the notation looks entirely different from that at the 4th fret because again, in this
system of notation, we are indicating the note where the left-hand finger touches the string to
produce the harmonic. The notes at the 9th fret are different from those at the 4th fret.
Therefore, the harmonic notation looks different on paper. But the notes coming out of the
guitar are identical (Ex.#17):
At the 9th fret the harmonics sound an octave plus a fifth higher than the notated pitch (Ex.
#18):
At the 19th fret, the pitches that come out of the guitar are exactly the same as those at the 7th
fret. But here again (as with the 4th and 9th frets), the notation for the 19th fret looks entirely
different that at the 7th fret because this system of notation indicates the note where the left-
hand finger touches the string to produce the harmonic. The notes at the 19th fret are different
from those at the 7th fret. Therefore, the harmonic notation looks different on paper. But the
notes coming out of the guitar are identical (Ex. #19):
At the 19th fret the harmonics sound the same pitch as the written pitch (Ex. #20):
Some composer/arrangers who use this system of natural harmonic notation differentiate
between harmonics that sound the same pitches as the written notes and those that produce
different pitches from the written notes. In the well-known natural harmonic section of his
Prelude No. 4, Heitor Villa-Lobos used this type of notation. Unfortunately the printed version
has many mistakes in it (as do countless other passages of harmonics in Villa-Lobos’ music).
This is what he was intending to notate (Ex. #21):
Note Villa-Lobos’ use of the open or hollow diamond noteheads. Other composers/arrangers
use this notation as well. I suppose it emphasizes that these are harmonics, but I find it
unnecessary. I think it is far preferable and less confusing to use the open or hollow diamond
noteheads only for half-notes and whole-notes, as in normal notation. Using the open diamond
noteheads for all note values can lead to misinterpretation or obfuscation of rhythms.
Incidentally, while we are on the subject of Villa-Lobos, another source of confusion in his music
arises from the publisher/printer’s use of the same circle symbol to indicate harmonics and
normal open strings.
System #3 for notating natural harmonics
The third system for notating natural harmonics indicates only the real pitch coming out of the
guitar. Sometimes, to help the performer locate the harmonic, additional information is given
such as string, fret number (in Arabic or Roman numerals), and left-hand finger to use. Other
times it is assumed the performer knows where to play the harmonic or can figure it out.
As with the first two systems of notation, the notehead may be a diamond or not, solid or hollow,
and a circle may or may not be placed somewhere by the notehead. Likewise, one of the terms
Harmonic (Harm. or Har.), Natural Harmonic (Nat. Harm., Nat. Har., or N.H.), Armonico or
Armonica (Arm. or Ar.) may or may not be used.
Proponents champion this system because it shows the real pitches that are intended to be
played. In the other two systems, what you see on paper has nothing to do with what you are
hearing.
Using this system, the first two measures of the harmonics section in Villa-Lobos’ Prelude No. 4
could be notated as follows. Remember, 8va (ottava) means the pitch sounds an octave higher
than written. If the 8va symbol is not used, sometimes the very high pitches can be difficult to
read. If it is used, sometimes the contour of the melody is not as clear (Ex. #22):
Without the designation of string and fret information, it can be a challenge to read this system
of natural harmonic notation. Adding that information, plus left-hand fingering, makes it much
easier (Ex. #23):
Again, keep in mind that a passage such as this can include all the bells and whistles of
notation (diamond noteheads, circles indicating harmonics, and string, fret, and finger
numbers) or may be notated in a barebones minimalist fashion such as this (Ex. #24):
ARTIFICIAL HARMONIC NOTATION
Artificial harmonics are notated at their sounding pitch sometimes with the use of ottava
nomenclature. The reason I say ottava nomenclature is that the 8va sign may be used, or
words such as:
- Harm. oct.
- El canto con armonicos (or arm. or ar.) octavados
- Melody in octave harmonics
- Octave harmonics
- Armonico octavado or Armonicos octavados (ar. 8 do or ar.8 dos)
- Armonia ottava (ar. ottava or ar. ott.)
- The fretted note with the word Harm. and the number 8 above or below the note.
And, as with natural harmonics, one may or may not see diamond noteheads (solid or hollow
according to the note value, or all hollow), normal noteheads, circle symbols indicating
harmonics, string numbers, fret numbers (in Arabic or Roman numerals), and fingering
numbers.
For example, the artificial harmonic section of El Testament d’Amelia harmonized by Miguel
Llobet could be notated in the following ways (Ex. #25):
In the sixth variation (“Dreaming”) of Nocturnal, Benjamin Britten notates artificial harmonics at
pitch (Ex. #26):
Here is a sample of Francisco Tárrega’s artificial harmonic notation (Ex. #27):
Here is an example of artificial harmonics as notated by Fernando Sor in the fourth variation of
his Fantaisie, Op. 6 (Ex.# 28):
Look at this next example of Sor’s notation in the same piece and variation. Here, we have an
interval consisting of one note played as a natural harmonic, the other as an artificial harmonic
(Ex. #29):
Note that the number 8 with a dashed line pointing to the note C is the only thing Sor uses to
indicate the C is an artificial harmonic. He follows System #1 for the natural harmonics, writing
the open string with a fret number.
In the third movement of his Nel Mezzo: Sonata, guitarist/composer David Leisner uses a
minimalist style of notating artificial harmonics (Ex. #30):
One more example of minimalist notation of artificial harmonics occurs in two measures of the
Omaggio by Manuel de Falla, arranged and fingered by Miguel Llobet (Ex. #31):
Those are the notational schemes you will encounter for artificial harmonics in the classical
guitar repertoire. Keep in mind these schemes will be altered by the numerous notational
variations already mentioned such as diamond noteheads, standard noteheads, circles to
designate harmonics, as well as the many descriptive terms added above or at the beginning of
the passage.
It gets worse
I know. It’s complicated enough as it is. But now, add in publisher/printer/composer/arranger
errors such as:
- Mixing diamond noteheads and standard noteheads for no reason within the same
passage (or even the same measure!) - Using the same circle symbol for harmonics and open strings.
- Notating a harmonic in the wrong octave. Or not specifying which octave it is in.
- Mixing two different types of natural harmonic notation in the same piece.
- Not specifying when natural harmonics are to be played as right-hand harmonics.
- Not clearly specifying which notes of a chord or interval are harmonics and which are not.
No wonder we’re all confused!
I’ve spent twenty hours of a beautiful weekend preparing this technique tip to help guide you
through the murky underworld of harmonic notation. But, you may still encounter an
indecipherable passage of harmonics. But don’t be discouraged. When confronted with a
passage of harmonics that you just can’t figure out, even with all the information I’ve given you
here, do what I do. Listen to how John Williams plays it! Haha. Or, just make your best wild
guess.
 |
 |
 | |  | |  |
 | |  |
 | |  |
 | |  | |  |
